| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product properties | Type: Version 14 RJ45 Product type: Panel mounting frame Number of positions: 8 Connection profile: RJ45 Application: Freenet Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Transmission medium: Copper |
| Connection data | Connection technology Connection method: Spring-cage connection |

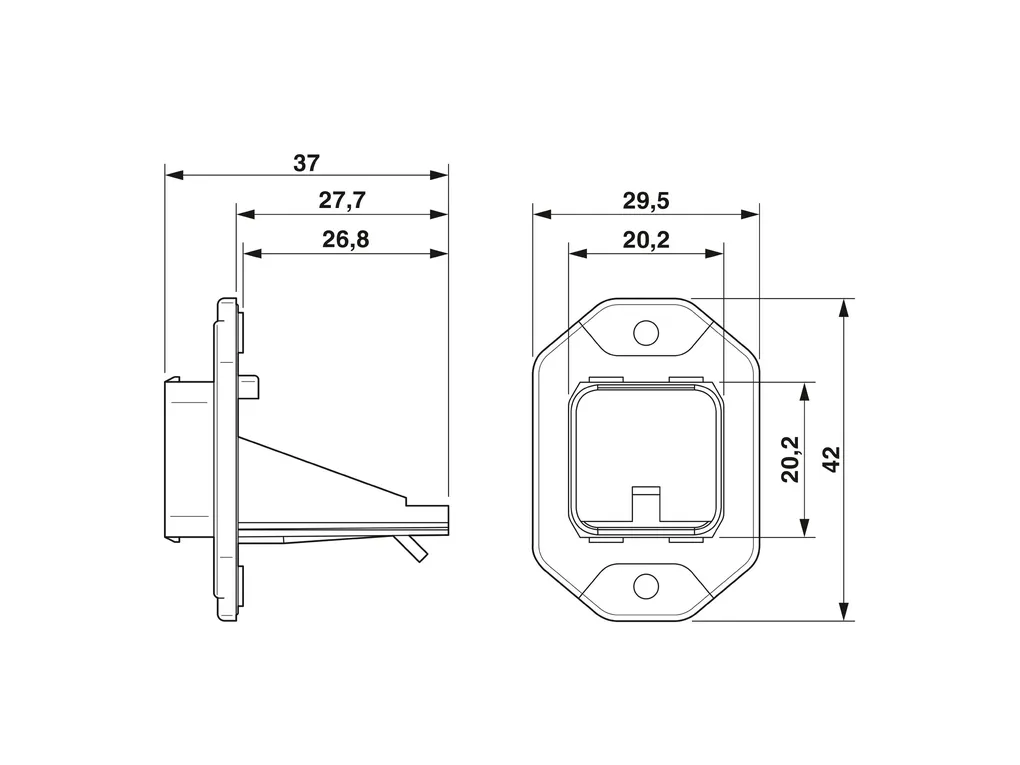

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cfd06b9358cf8f4aabe08181a6f19df3/-S204x204-FJPG Width: 29.5 mm Height: 42 mm Length: 37 mm |
| Material specifications | Color: black Material: Plastic Flammability rating according to UL 94: V0 Seal material: NBR Seal material, flat gasket: NBR Housing surface material: PA, light gray Contact surface material: Au/Ni Contact carrier material: Polyester GF Housing material: Plastic |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C |
| Mounting | Mounting type: Front mounting Connection method: Spring-cage connection |
| ECLASS | ECLASS-11.0: 27440210 ECLASS-12.0: 27440210 ECLASS-13.0: 27440210 |
| ETIM | ETIM 9.0: EC002310 |
| UNSPSC | UNSPSC 21.0: 39121400 |
