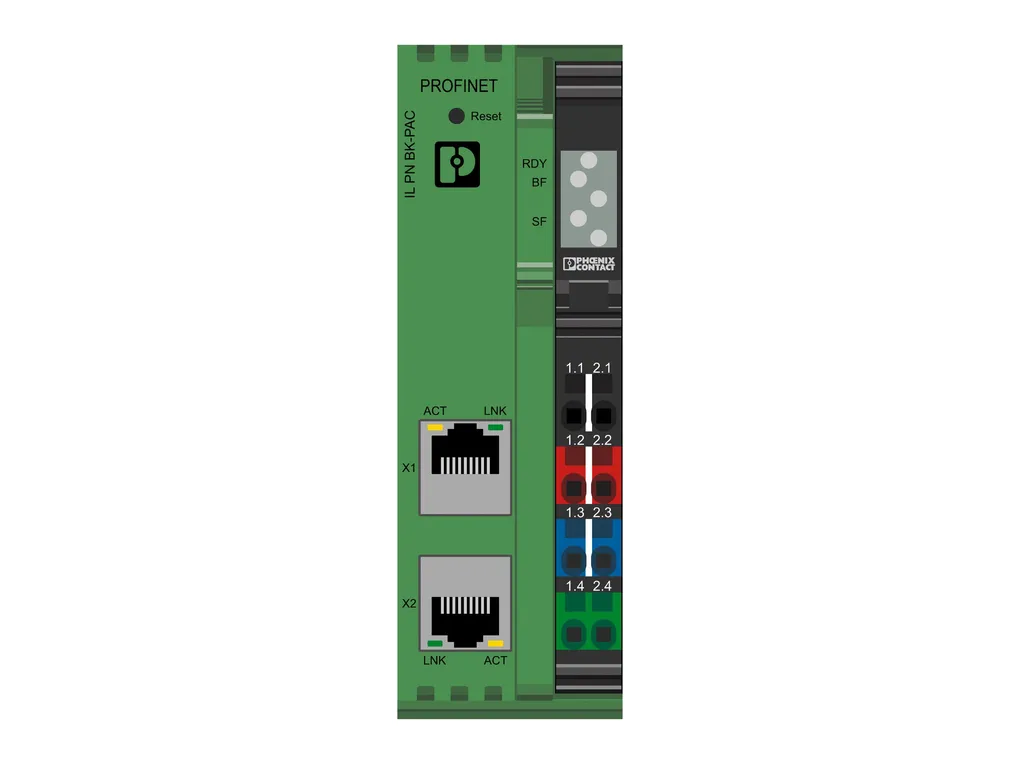

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f9b05418e27ef044a6ecb9c31b53ec53/-S204x204-FJPG Width: 40 mm Height: 119.4 mm Depth: 71.5 mm Note on dimensions: Housing dimensions |
| Interfaces | PROFINET Number of interfaces: 2 Connection method: RJ45 jack Note on the connection method: Auto negotiation and autocrossing Transmission speed: 100 Mbps (acc. to PROFINET standard) Transmission physics: Ethernet in RJ45 twisted pair Inline local bus Number of interfaces: 1 Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps (automatic detection, no combined system) |
| System properties | System limits Number of supported devices: max. 63 (per station) Number of local bus devices that can be connected: max. 63 Number of devices with parameter channel: max. 16 Number of supported branch terminals with remote bus branch: 3 PROFINET Device function: PROFINET device Specification: Version 2.3 Update rate: min. 1 ms (depending on the size of the bus system) Device ID: 0140hex Vendor ID: 00B0hex Module ID code (hex): none Register length: 16 bit |
| Product properties | Type: modular Product type: I/O component Product family: Inline Mounting position: any No. of channels: 12 Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1) |
| Electrical properties | No. of channels: 12 Maximum power dissipation for nominal condition: max. 2.2 W Potentials: Bus coupler supply U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 0.91 ADC (with max. number of connected I/O terminal blocks) typ. 85 mA (no local bus devices connected) Potentials: Communications power (U Supply voltage: 7.5 VDC Potentials: Supply of analog modules (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Main circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Electrical isolation/isolation of the voltage ranges Test voltage: Ethernet interface 1 / Ethernet interface 2: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / logic (UBK, UL, UANA): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / I/O (UM, US): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 1 / functional ground: 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / logic (UBK, UL, UANA): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / I/O (UM, US): 1500 VAC, 50 Hz, 1 min. Test voltage: Ethernet interface 2 / functional ground: 1500 VAC, 50 Hz, 1 min. Test voltage: Logic (UBK, UL, UANA) / I/O (UM, US): 500 VAC, 50 Hz, 1 min. Test voltage: Logic (UBK, UL, UANA) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: I/O (UM, US) / functional ground: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting Mounting position: any |
| ECLASS | ECLASS-11.0: 27242608 ECLASS-12.0: 27242608 ECLASS-13.0: 27242608 |
| ETIM | ETIM 9.0: EC001604 |
| UNSPSC | UNSPSC 21.0: 32151600 |
