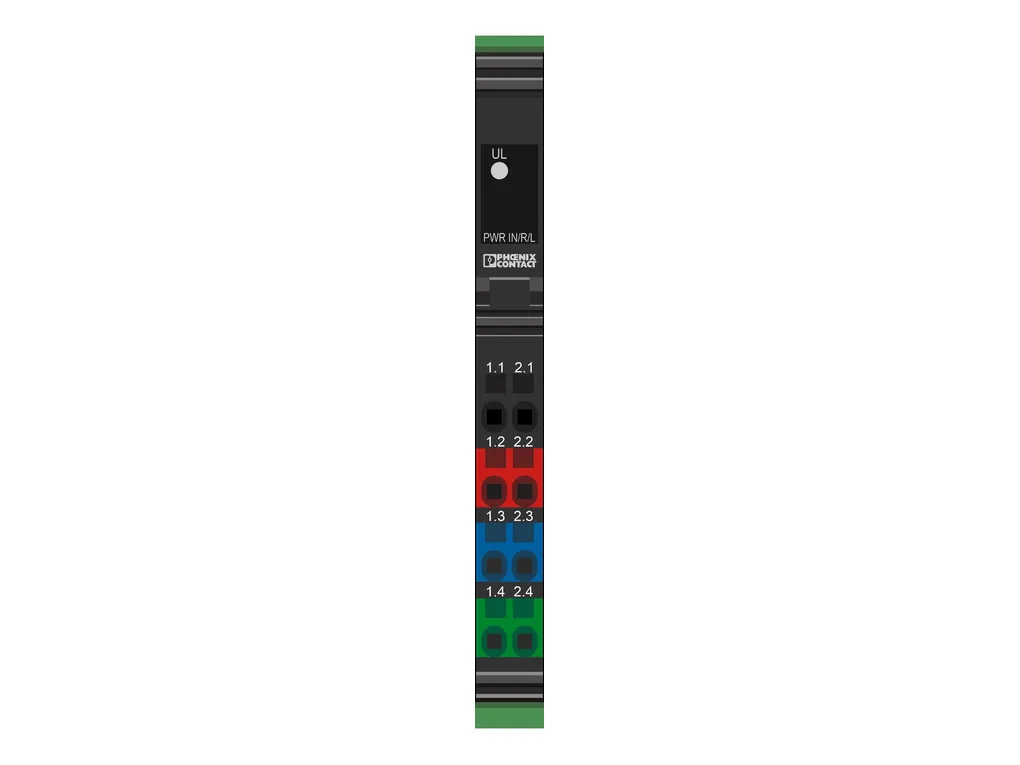

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2182c65be3908e489150116208cdf69e/-S204x204-FJPG Width: 12.2 mm Height: 119.8 mm Depth: 71.5 mm |
| Notes | Utilization restriction CCCex note: Use in potentially explosive areas is not permitted in China. |
| Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps / 2 Mbps (Can be used in Inline stations with these transmission speeds) |
| System properties | Module ID code (dec.): none ID code (hex): none Register length: 0 Byte Required parameter data: 0 Byte Required configuration data: 0 Byte |
| Product properties | Type: modular Product type: I/O component Product family: Inline Number of plugs: 1 Insulation characteristics Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Electrical properties | Test section: 7.5V communications power, 24V analog supply/functional ground 500 VAC 50 Hz 1 min. 7.5 V logics supply, 24 V analog supply / 24 V main supply, 24 V segment supply 500 VAC 50 Hz 1 min. 24V main supply, 24V segment supply/functional ground 500 VAC 50 Hz 1 min. Protective circuit: Surge protection; Input protective diodes (can be destroyed by permanent overload)Pulse loads up to 1500W are short circuited by the input protective diode. Protection against polarity reversal (segment supply/main supply); Serial diode in the lead path of the power supply unit; in the event of an error only a low current flows. In the event of an error, no fuse trips within the external power supply unit. Fuse: electrical/thermal overload protection, included in scope of delivery Supply I/O voltage: 24 VDC I/O voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Max. current consumption: 274 mA (at nominal voltage) Potentials Power consumption: max. 0.6 W (entire device) Potentials: 24 V supply (U Supply voltage: 24 VDC (via Inline connector) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 274 mA DC (at nominal voltage) min. 13 mA DC (at nominal voltage) Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing) Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242610 ECLASS-12.0: 27242610 ECLASS-13.0: 27242610 |
| ETIM | ETIM 9.0: EC001600 |
| UNSPSC | UNSPSC 21.0: 32151600 |
