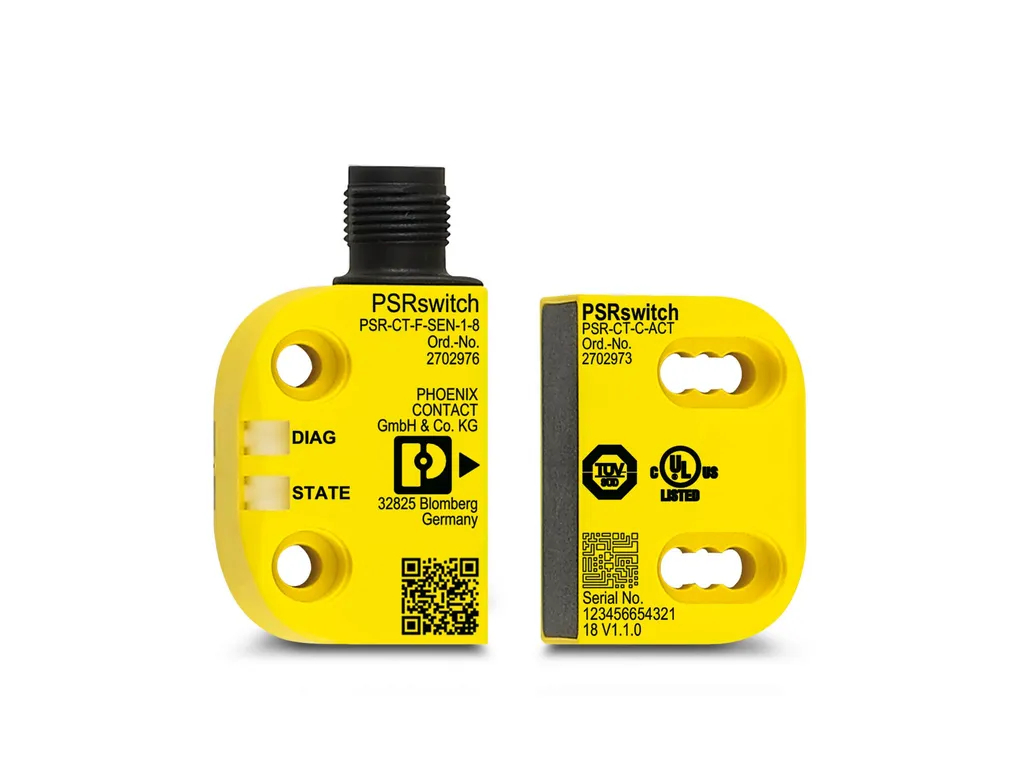

| Product properties | Product type: Safety switches Application: Safety door monitoring Position monitoring Technology: Transponder Insulation characteristics Protection class: III Times Discrepancy time: max. 10 ms (between the safety outputs) Switch-on delay: typ. 5 s (after switching UB on) Switch-on time: max. 400 ms (for the safety outputs) Risk time: max. 125 ms (Stand-alone device) Test pulses: typ. 300 µs (Test pulse duration) approx. 100 ms (Test pulse interval) Delay time: typ. 10 ms (Risk time delay per device) |
| Electrical properties | Short-circuit current: typ. 100 A (conditional short-circuit current) Switching frequency: max. 1 Hz Rated insulation voltage: max. 300 V Rated surge voltage: max. 1.5 kV Supply Supply voltage: 24 VDC ±15% (PELV, controlled, residual ripple <5%) Current consumption: max. 40 mA Protection: min. 0.25 A (to be performed externally) max. 8 A (to be performed externally) |
| Output data | Signal Designation: DGN Output description: p-wired Number of outputs: 1 Output voltage: min. (UB-1.5V (HIGH)) max. (UB (HIGH)) min. 0 VDC (LOW) max. 1 VDC (LOW) Current: min. 1 mA max. 50 mA Short-circuit-proof: yes Safety output Designation: FO1A, FO1B Output description: Semiconductor outputs, p-wired Number of outputs: 2 Output voltage: min. (UB-1.5V (HIGH FO1A, FO1B)) max. (UB (HIGH FO1A, FO1B)) min. 0 VDC (LOW FO1A/FO1B) max. 1 VDC (LOW FO1A/FO1B) Switching current: min. 1 mA (per safety output) max. 150 mA (per safety output) Residual current: ⤠0.25 mA Utilization category in accordance with IEC 60947-5-2: 150 mA (24V (DC13)) Short-circuit-proof: yes Note on protection circuit: NOTE: Protect the outputs under inductive loads with a freewheeling diode. |
| Connection data | Connection technology Connection technology: M12 connector pluggable: no Number of positions: 8 Conductor connection Connection method: Connector |
| Signaling | Status display: 2 LEDs |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/89eb6cf7d8e4d540ac8ae7819869c2bf/-S204x204-FJPG Width: 26.5 mm Height: 40 mm Depth: 18 mm Minimum distance: 140 mm (between two safety circuits) 7 mm (between sensor and actuator when traveling in the Y-direction) |
| Material specifications | Housing material: PBT |
| Characteristics | Safety data: ENISO13849 Category: 4 Performance level (PL): e Safety data: IEC 61508 - High demand Safety Integrity Level (SIL): 3 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67/IP69/IP69K IP67 (with SAC cabling) Ambient temperature (operation): -25°C ... 55°C Ambient temperature (storage/transport): -40°C ... 70°C Vibration (operation): in accordance with EN60947-5-2 |
| Approvals | Conformity/Approvals EMC conformance: EN60947-5-3 |
| Mounting | Mounting type: not flush Assembly instructions: Note ENISO14119 Maximum tightening torque to secure: 0.8Nm Mounting position: any Connection method: Connector |
| ECLASS | ECLASS-11.0: 27272403 ECLASS-12.0: 27274601 ECLASS-13.0: 27274601 |
| ETIM | ETIM 9.0: EC003015 |
| UNSPSC | UNSPSC 21.0: 32151800 |
