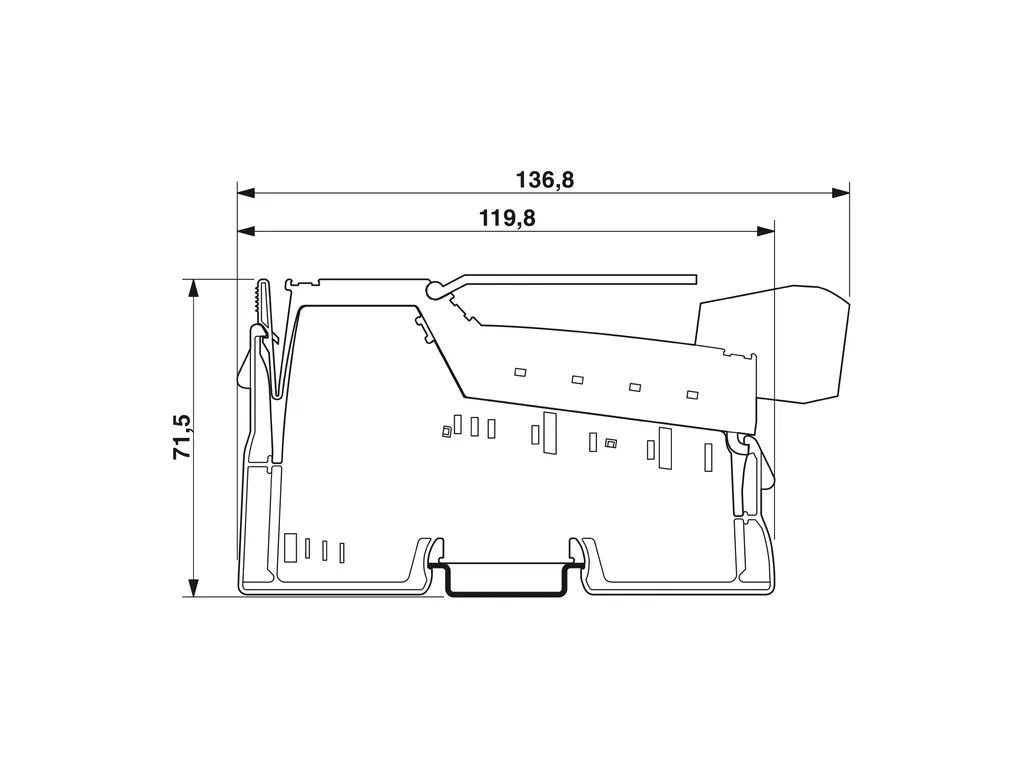

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8f49d2b498684640a945b59e148b2698/-S204x204-FJPG Width: 24.4 mm Height: 135 mm Depth: 71.5 mm |
| Interfaces | Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 2 Mbps RS-485, RS-422 Number of interfaces: 1 (be operated simultaneously) Connection method: Spring-cage connection Note on the connection method: Use shielded cables. Transmission speed: 110 bps ... 38400 bps (can be parameterized) Transmission physics: Copper Protocols supported: Transparent, end-to-end, XON/XOFF, dual buffer, 3964R, Modbus/RTU, Modbus/ASCII Termination resistor: typ. 120 é (active, integrated) Data bits: 7 or 8 Stop bits: 1 or 2 Input buffer: 4 kByte Output buffer: 1 kByte |
| System properties | Module ID code (dec.): 220 ID code (hex): DC Length code (hex): 01 Length code (dec): 01 Process data channel: 16 bit Input address area: 2 Byte Output address area: 2 Byte Register length: 48 bit Required parameter data: 27 Byte Required configuration data: 5 Byte |
| Product properties | Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields |
| Electrical properties | Maximum power dissipation for nominal condition: max. 2 W Potentials Power consumption: max. 2 W (at UL, within the permissible operating temperature) Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 260 mA (all connections of the serial interface are short-circuited) typ. 185 mA Power consumption: typ. 1.388 W |
| Connection data | Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 75 % ... 85 % (in the range of -25°C ... +55°C, appropriate measures against increased humidity (> 85%) must be taken.) Permissible humidity (storage/transport): 75 % ... 85 % (Slight temporary condensation may sometimes appear on the housing, e.g. when the terminal block is brought out of a vehicle into an enclosed room.) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting |
| ECLASS | ECLASS-11.0: 27242608 ECLASS-12.0: 27242608 ECLASS-13.0: 27242608 |
| ETIM | ETIM 9.0: EC001604 |
| UNSPSC | UNSPSC 21.0: 32151600 |
