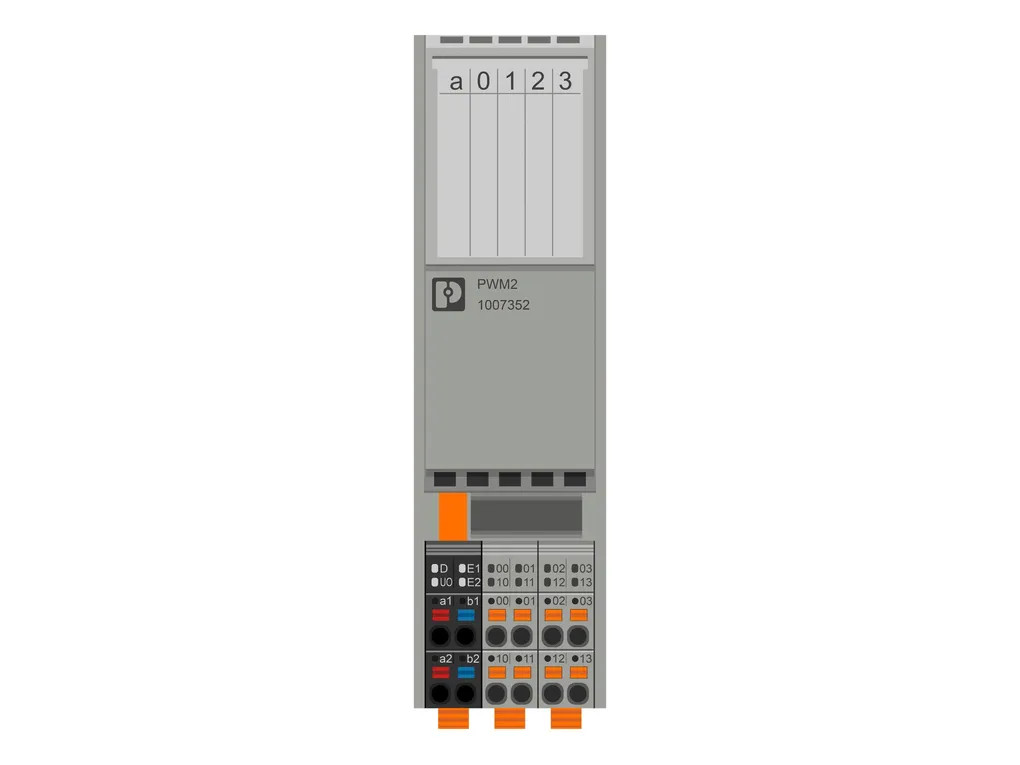

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/70f8cf974520554e81de80f4005f2af3/-S204x204-FJPG Width: 35 mm Height: 126.1 mm Depth: 54 mm Note on dimensions: The depth applies when a TH35-7.5 DIN rail is used (in accordance with EN60715). |
| Interfaces | AxiolineFlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps |
| System properties | Module Input address area: 0 Byte Output address area: 8 Byte Required parameter data: 1 Byte Required configuration data: 6 Byte |
| Output data | Signal Output name: PWM outputs Operating mode: PWM, pulse generator, push-pull output Connection method: Push-in connection Connection technology: 2-conductor Number of outputs: 2 Frequency range: 0 Hz ... 65535 Hz Pulse duty factor: 0 % ... 100 % Nominal output voltage: 24 V (UO - 1.1V) 5 VDC Nominal current IN: max. 500 mA (at 24 V DC) max. 10 mA (at 5 V DC) Nominal load, ohmic: max. 12 W (at 24VDC nominal voltage) max. 50 mW (at 5VDC nominal voltage) Nominal load, inductive: max. 12 VA (at 24VDC nominal voltage) max. 50 mVA (at 5VDC nominal voltage) Nominal load, lamp: max. 6 W (at nominal voltage) Short-circuit-proof: yes Short-circuit current: typ. 2.2 A (for approx.1.2µs, auto-retry after approx. 40µs, 24V output) typ. 24 mA (5 V output) Transient surge protection: yes |
| Product properties | Type: block modular Product type: I/O component Product family: AxiolineF Mounting position: any (no temperature derating) Scope of delivery: including bus base module and AxiolineF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1) |
| Electrical properties | Potentials: AxiolineF local bus supply (U Supply voltage: 5 VDC (via bus base module) Current draw: max. 150 mA Power consumption: max. 0.75 W Potentials: Supply voltage input U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC including all tolerances, including ripple Current draw: max. 1.1 A Power consumption: max. 33 W (of which 1.3W internal losses) Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; parallel diode; with external 1A fuse (for start-up only) Electrical isolation/isolation of the voltage ranges Test voltage: 5V supply of the local bus (UBus) / 24V supply (I/Os): 500 VAC, 50 Hz, 1 min. Test voltage: 5V supply of the local bus (UBus) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection technology Connection name: AxiolineF connector Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineF: system and installationâ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineF: system and installationâ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing) |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: DIN rail mounting Mounting position: any (no temperature derating) |
| ECLASS | ECLASS-11.0: 27242605 ECLASS-12.0: 27242605 ECLASS-13.0: 27242605 |
| ETIM | ETIM 9.0: EC001601 |
| UNSPSC | UNSPSC 21.0: 32151600 |
