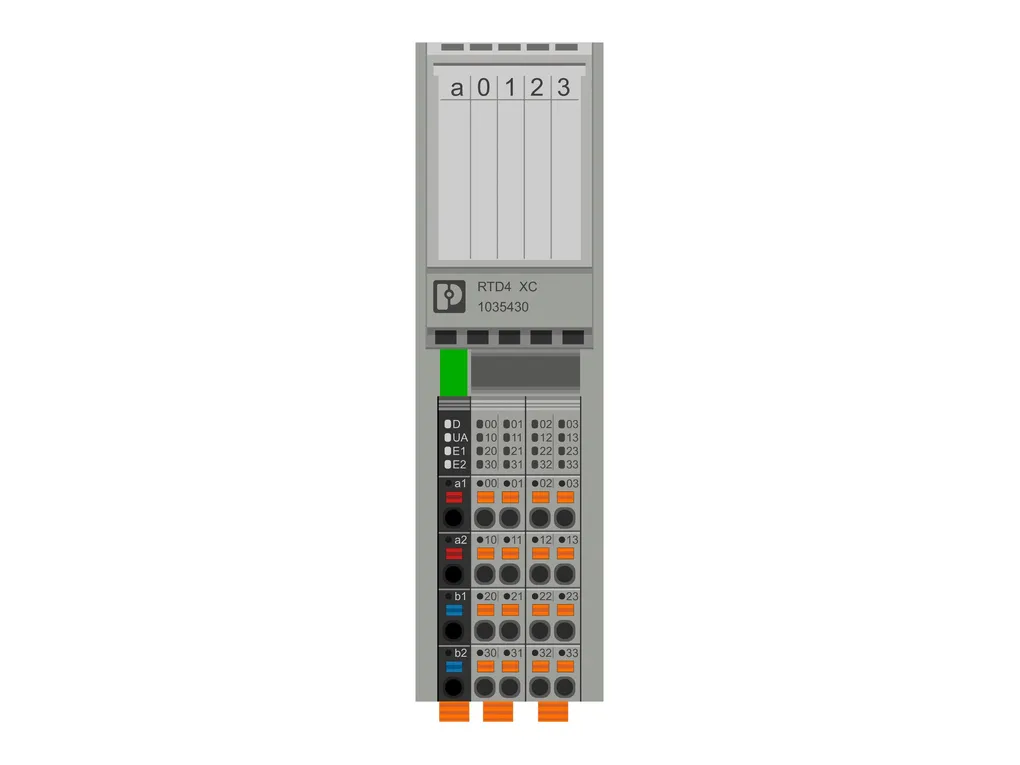

AXL F RTD4 XC 1H - Temperature module

AxiolineF, Temperature recording module, Analog inputs: 4 (for resistance temperature detectors), connection technology: 2-, 3-, 4-conductor (shielded), transmission speed in the local bus: 100 Mbps, Extremeconditions version, degree of protection: IP20, including bus base module and AxiolineF connectors

Product Code: 1035430

Partner cod.: 1035430

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/172c7c5767999646b422d3edebda44f8/-S204x204-FJPG Width: 35 mm Height: 126.1 mm Depth: 54 mm Note on dimensions: The depth applies when a TH35-7.5 DIN rail is used (in accordance with EN60715).
Interfaces	AxiolineFlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps
System properties	Module Input address area: 8 Byte Output address area: 8 Byte Required parameter data: 12 Byte Required configuration data: 6 Byte
Input data	Analog Input name: Analog inputs Description of the input: Inputs for resistive temperature sensors Number of inputs: 4 (for resistance temperature detectors) Connection method: Push-in connection Connection technology: 2-, 3-, 4-conductor (shielded) A/D converter resolution: 24 bit Sensor types (RTD) that can be used: Pt, Ni, KTY, Cu sensors Data formats: IB IL, S7-compatible Measured value representation: 16 bits (15 bits + sign bit) Input filter time: 40 ms 60 ms 100 ms 120 ms (adjustable) Nominal value of the current sources: 1 mA (Pt 100, Ni 100, R_Lin 500 Ã©; pulse current, the specification is valid during the sampling phase) 210 µA (P t1000, Ni 1000, R_Lin 5000 Ã©; pulse current, the specification is valid during the sampling phase) Differential non-linearity: typ. 1ppm / ±0.0001% (in all ranges) Integral non-linearity: typ. 30ppm / ±0.003% (Pt 100) typ. 20ppm / ±0.002% (R_Lin 500Ã©) typ. 200ppm / ±0.02% (R_Lin 5000Ã©) Linear resistance measuring range: 0 Ã© ... 500 Ã© 0 kÃ© ... 5 kÃ© Protective circuit: Short-circuit protection, overload protection of the inputs Transient protection of inputs Transient protection of sensor supplies
Product properties	Type: block modular Product type: I/O component Product family: AxiolineF Mounting position: any (no temperature derating) Scope of delivery: including bus base module and AxiolineF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1)
Electrical properties	Potentials Power consumption: max. 1.1 W (entire device) Potentials: AxiolineF local bus supply (U Supply voltage: 5 VDC (via bus base module) Current draw: max. 140 mA Power consumption: max. 700 mW Potentials: Supply for analog modules (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 17 mA Power consumption: max. 400 mW Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; Polarity protection diode Transient protection; Suppressor diode Electrical isolation/isolation of the voltage ranges Test voltage: 5V supply of the local bus (U_Bus) / 24V supply (I/Os): 500 VAC, 50 Hz, 1 min. Test voltage: 5V supply of the local bus (U_Bus)/analog inputs: 500 VAC, 50 Hz, 1 min. Test voltage: 5V supply of the local bus (U_Bus) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (I/O)/analog inputs: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: Analog inputs/functional ground: 500 VAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: AxiolineF connector Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢AxiolineF: system and installationÃ¢ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢AxiolineF: system and installationÃ¢ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C (Standard, applications with UL approval, use in zone2 potentially explosive area) -40°C ... 70°C (Extended, see section Ã¢Tested successfully: use under extreme ambient conditionsÃ¢ in the data sheet.) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Approvals	ATEX Identification: Ã¯ II 3 G Ex ec IIC T4 Gc Certificate: UL 20 ATEX 2441X UKEX Identification: Ã¯ II 3 G Ex ec IIC T4 Gc Certificate: PxCIMA22UKEX2701949X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx ULD 20.0026X UL, USA/Canada Identification: cULus Certificate: E238705 UL Ex, USA / Canada Identification: Class I, Zone 2, AEx ec IIC T4 ClassI, Division2, Groups A, B, C, D, T4 Ex ec IIC T4 Gc X Certificate: E366272 CCC/China-Ex Identification: Ex ec IIC T4 Gc Certificate: Ã¯¬, 2021122309114456
Mounting	Mounting type: DIN rail mounting Mounting position: any (no temperature derating)
