| Product properties | Product type: Flat nut Thread type: 3/8"-NPT |

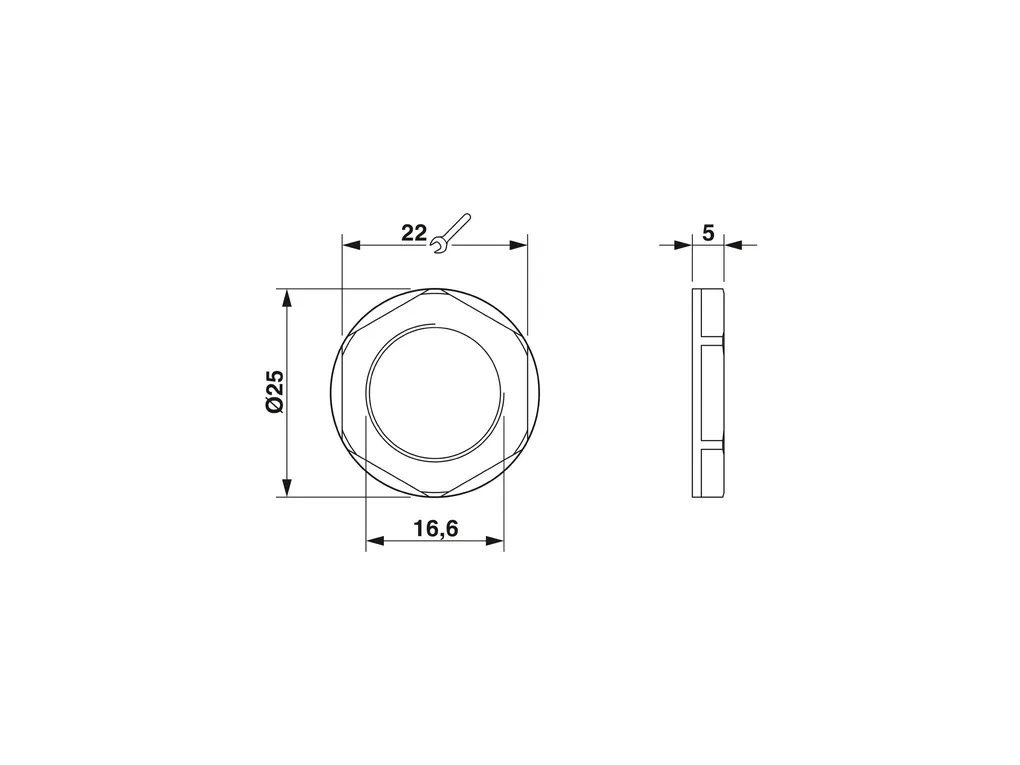

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/744eef28feeaba4fba622e09b6c23327/-S204x204-FJPG Length: 5 mm Diameter: 16.6 mm Connecting thread diameter: 16.6 mm Wrench size, counter nut: 22 mm Hexagon angular dimension: 25 mm Thread type connection side: 3/8"-NPT |
| Material specifications | Material: PA Flammability rating according to UL 94: V2 |
| Cable/line | Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 100°C |
