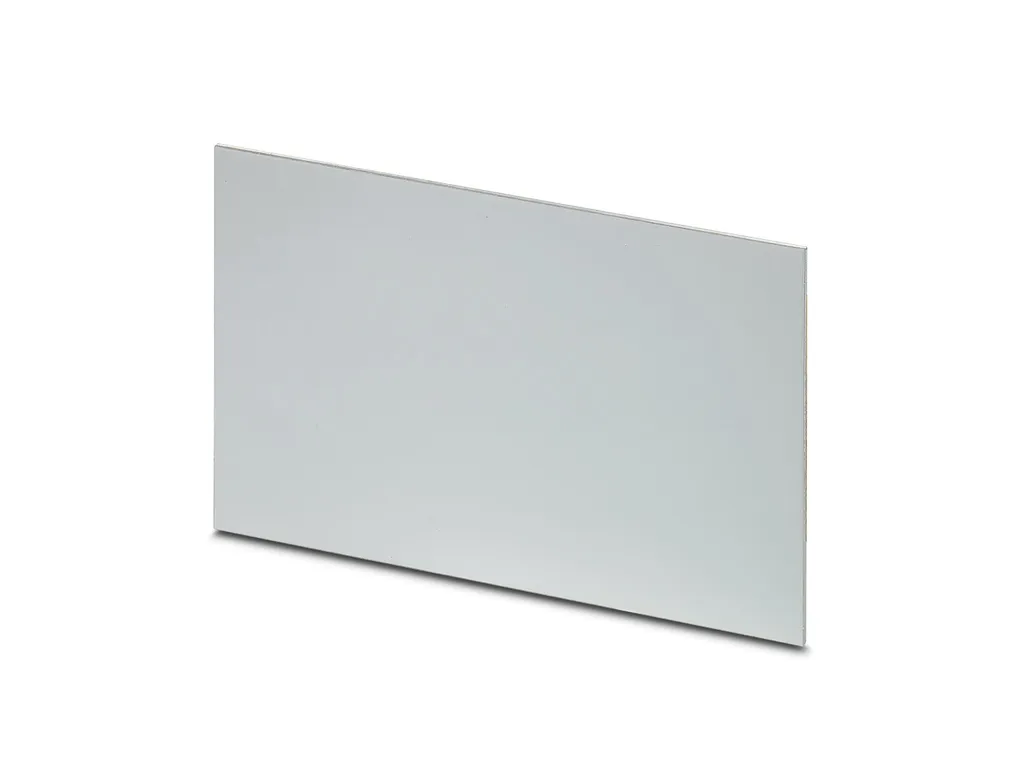

| Product properties | Product type: Component housing cover Product family: UM-ALU 4-72 Type: Basic profile front plate Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU |
| Dimensions | Width: 71.8 mm Depth: 2 mm Length: 200 mm |
| Material specifications | Color: aluminum color Color (Housing): aluminum Surface characteristics: anodized Housing material: Aluminum |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C |
| Mounting | Mounting position: parallel to the DIN rail |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190602 |
| ETIM | ETIM 9.0: EC002779 |
| UNSPSC | UNSPSC 21.0: 31261500 |
