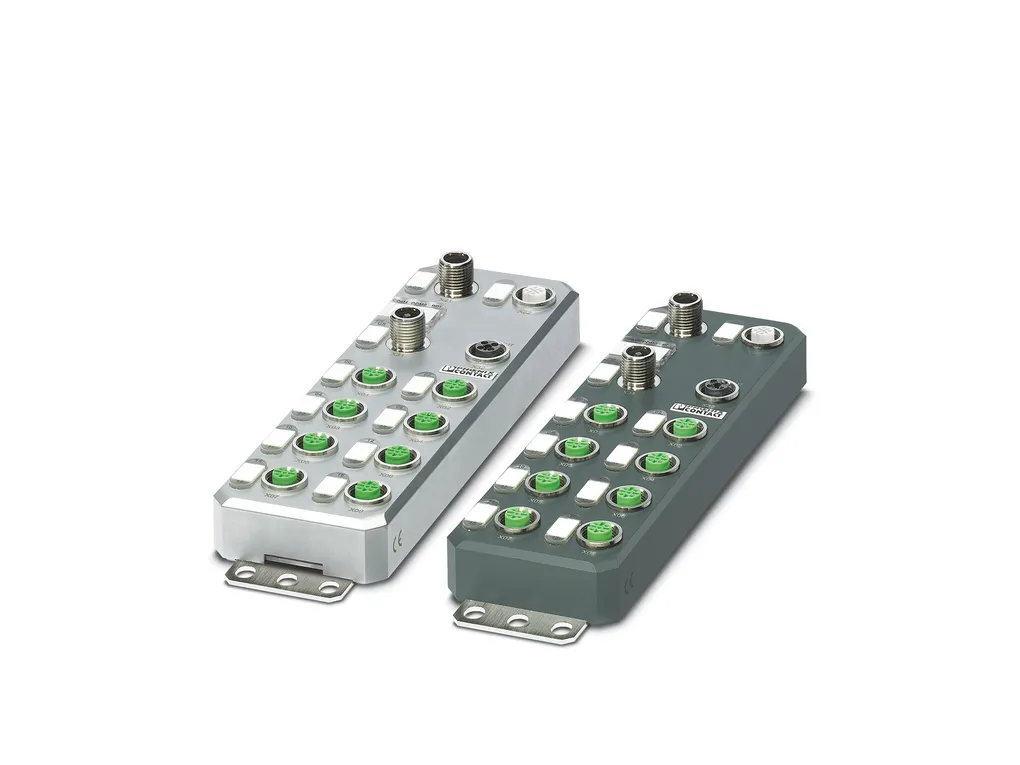

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5b337e318ca1ed41a970b074b0b1c553/-S204x204-FJPG Width: 60 mm Height: 185 mm Depth: 30.5 mm Drill hole spacing: 198.5 mm Note on dimensions: The height is 212 mm including fixing clips. |
| Notes | Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area |
| Material specifications | Housing material: Pocan® Color: anthracite |
| Interfaces | Number of interfaces: 2 No. of channels: 2 Connection method: M12 fast connection technology Note on the connection method: B-coded Number of positions: 5 Transmission speed: 9.6 kbps ... 12 Mbps (Automatic baud rate detection) Transmission physics: PROFIBUS-DP-compliant copper cable Address area assignment: 1 ... 126, adjustable PROFIBUS DP Equipment type: PROFIBUS slave System-specific protocols: PROFIBUS protocols DP V1 |
| System properties | Module ID code (hex): 0E5B Input address area: 16 bit Output address area: 0 bit Register length: 8 bit |
| Input data | Digital Input name: Digital inputs Description of the input: EN 61131-2 types 1 and 3 Number of inputs: 16 Cable length: max. 30 m (to the sensor) Connection method: M12 connector, double occupancy Connection technology: 4-conductor Input voltage range "0" signal: 0 V ... 5 VDC Input voltage range "1" signal: 11 VDC ... 30 VDC Nominal input voltage UIN: 24 VDC Nominal input current at UIN: typ. 3 mA Sensor current per channel: typ. 75 mA (from US) Total sensor current: max. 1.2 A (per device) Input filter time: < 1000 µs Protective circuit: Overload protection, short-circuit protection of sensor supply |
| Product properties | Type: Stand-Alone Product type: I/O component Product family: AxiolineE |
| Electrical properties | Potentials Voltage supply US: 24 VDC Power supply at US: max. 4 A Current consumption from US: typ. 8 mA max. 1.2 A Supply: Module electronics and sensors Designation: Supply of module electronics and sensors (US) Connection method: M12 connector (T-coded) Number of positions: 4 Supply voltage: 24 VDC Supply voltage range: 18 VDC ... 31.2 VDC (including all tolerances, including ripple) Current consumption: typ. 165 mA ±15% (at 24 V DC) max. 12 A Supply: Actuators Designation: Supply of actuators (UA) for additional devices Connection method: M12 connector (T-coded) Number of positions: 4 Supply voltage: 24 VDC Supply voltage range: 18 VDC ... 31.2 VDC (including all tolerances, including ripple) Current consumption: typ. 3 mA ±15% (at 24 V DC) max. 12 A Electrical isolation/isolation of the voltage ranges Test voltage: 24 V supply (communications power and sensor supply, digital inputs)/bus connection: 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (communications power and sensor supply, digital inputs)/FE: 500 VAC, 50 Hz, 1 min. Test voltage: Bus connection / FE: 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/24 V supply (communications power and sensor supply, digital inputs): 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/bus connection: 500 VAC, 50 Hz, 1 min. Test voltage: 24 V supply (actuator supply)/FE: 500 VAC, 50 Hz, 1 min. |
| Connection data | Connection method: M12 connector |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C Degree of protection: IP65/IP67 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 5 % ... 95 % Permissible humidity (storage/transport): 5 % ... 95 % |
| Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1) |
| Mounting | Mounting type: Wall mounting |
| ECLASS | ECLASS-11.0: 27242604 ECLASS-12.0: 27242604 ECLASS-13.0: 27242604 |
| ETIM | ETIM 9.0: EC001599 |
| UNSPSC | UNSPSC 21.0: 32151600 |
