2862204 PHOENIX CONTACT - Technology Bsa

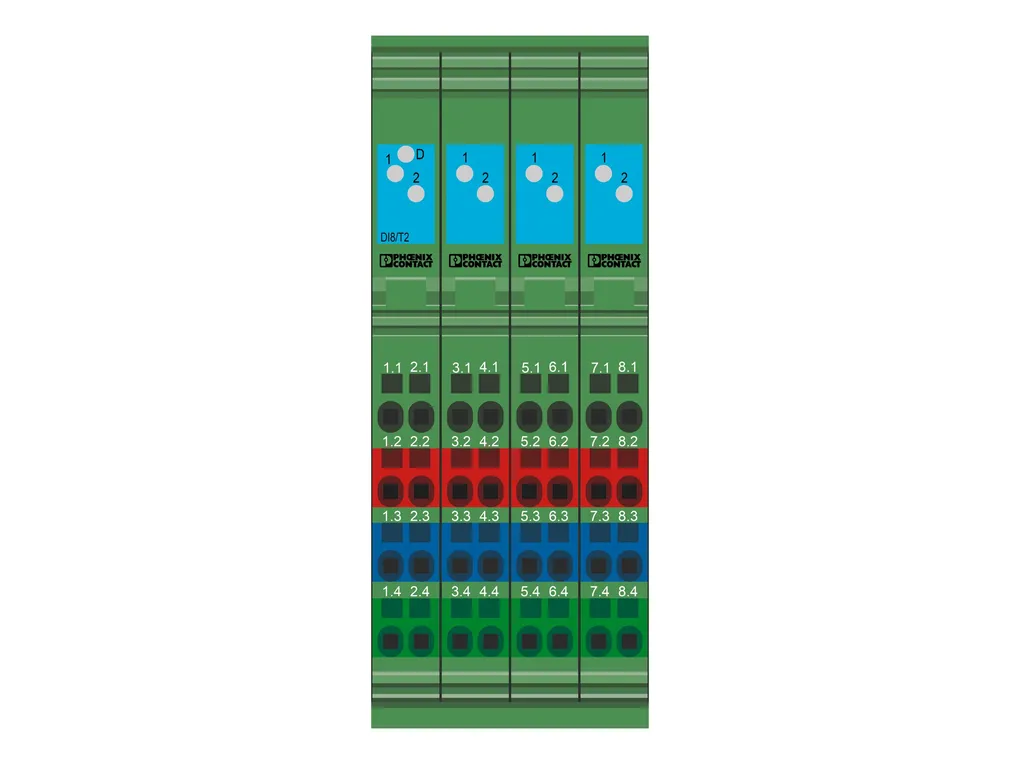

IB IL 24 DI 8/T2-PAC - Digital module

Inline, Digital input terminal, Digital inputs: 8, 24 VDC, connection technology: 4-conductor, transmission speed in the local bus:500 kbps, degree of protection: IP20, including Inline connectors and marking fields

Product Code: 2862204

Partner cod.: 2862204

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61847ea072ac2f4a94bf2299909bd975/-S204x204-FJPG Width: 48.8 mm Height: 119.8 mm Depth: 71.5 mm Note on dimensions: Housing dimensions
Interfaces	Inline local bus Number of interfaces: 2 Connection method: Inline data jumper Transmission speed: 500 kbps
System properties	Module ID code (dec.): 190 ID code (hex): BE Length code (hex): 81 Length code (dec): 129 Process data channel: 8 bit Input address area: 1 Byte Output address area: 0 Byte Register length: 8 bit Required parameter data: 1 Byte Required configuration data: 4 Byte
Input data	Digital Input name: Digital inputs Description of the input: IEC 61131-2 Type2 Number of inputs: 8 Connection method: Spring-cage connection Connection technology: 4-conductor Input voltage: 24 VDC Input voltage range "0" signal: -3 VDC ... 5 VDC Input voltage range "1" signal: 15 VDC ... 30 VDC Nominal input voltage U_IN: 24 VDC Nominal input current at U_IN: min. 6 mA (at nominal voltage) Sensor current per channel: max. 250 mA Typical response time: < 1 ms Protective circuit: Short-circuit and overload protection
Product properties	Type: modular Product type: I/O component Product family: Inline Scope of delivery: including Inline connectors and marking fields No. of channels: 8 Operating mode: Process data mode with one byte
Electrical properties	No. of channels: 8 Maximum power dissipation for nominal condition: 24.12 W Potentials: Communications power (U Supply voltage: 7.5 VDC (via voltage jumper) Current draw: max. 50 mA Power consumption: max. 0.375 W Potentials: Segment circuit supply (U Supply voltage: 24 VDC (via voltage jumper) Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 2 A 0 A Electrical isolation/isolation of the voltage ranges Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O): 500 VAC, 50 Hz, 1 min. Test voltage: 7.5V supply (bus logic)/functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: Inline connector Conductor connection Connection method: Spring-cage connection Conductor cross section rigid: 0.08 mm² ... 1.5 mm² Conductor cross section flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm Inline connector Connection method: Spring-cage connection Conductor cross section, rigid: 0.08 mm² ... 1.5 mm² Conductor cross section, flexible: 0.08 mm² ... 1.5 mm² Conductor cross section AWG: 28 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 55°C Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -25°C ... 85°C Permissible humidity (operation): 10 % ... 95 % (according to DINEN61131-2) Permissible humidity (storage/transport): 10 % ... 95 % (according to DINEN61131-2)
Standards and regulations	Protection class: III (IEC 61140, EN61140, VDE0140-1)
Mounting	Mounting type: DIN rail mounting
