PHOENIX CONTACT 2981017
PHOENIX CONTACTNot available

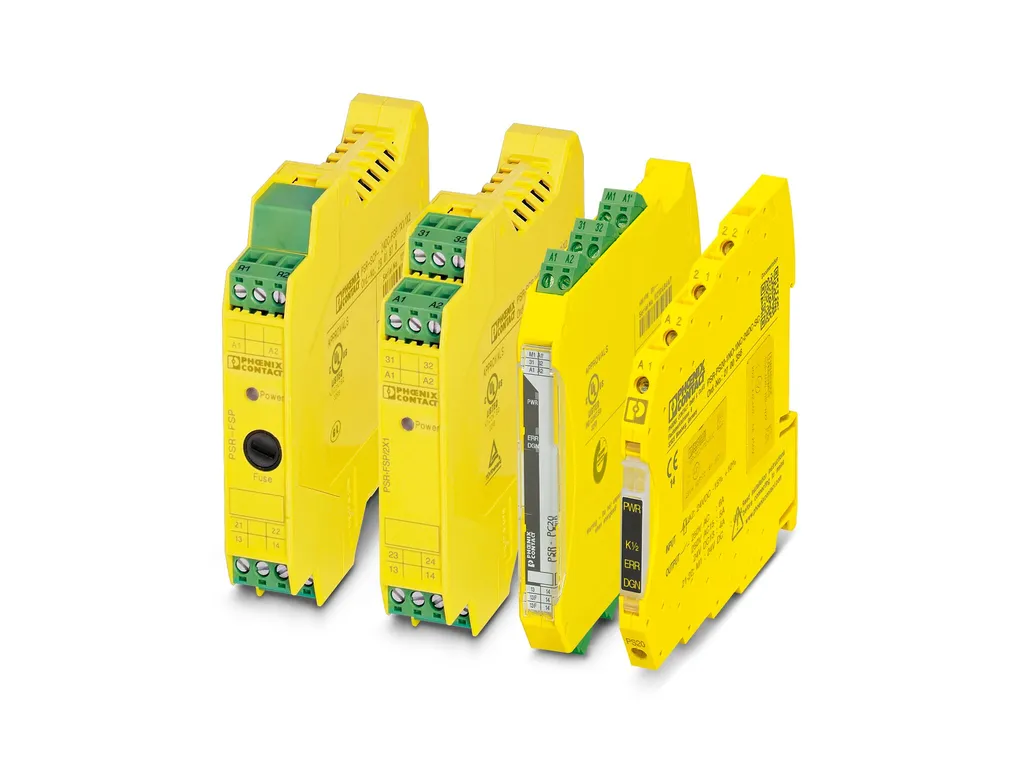

PSR-SPP- 24DC/ESP4/2X1/1X2 - Safety relays

Safety relay for SIL3 high-demand and low-demand applications, also approved in accordance with EN50156, DNV, and ENISO13849, emergency stop and safety door monitoring, 1-channel, 2enabling current paths, 1signal contact, width: 22.5mm, pluggable Push-in terminal block
Product Code: 2981017
Partner cod.: 2981017
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesProduct type: Safety relays
Product family: PSRclassic
Application: Emergency stop
Process technology
Safety door
Mechanical service life: approx. 107 cycles
Relay type: Electromechanical relay with force-guided contacts in accordance with IEC/EN61810-3
Electrical propertiesMaximum power dissipation for nominal condition: 15.9 W (I²=72A²)
Nominal operating mode: 100% operating factor
Air clearances and creepage distances between the power circuits
Rated insulation voltage: 250 V
Rated surge voltage/insulation: 6 kV / Safe isolation, increased insulation
Basic insulation 4 kV between all current paths and housing
Input dataGeneral
Rated control circuit supply voltage US: 24 VDC -15% / +10%
Power consumption at US: 1.2 W
Rated control supply current IS: typ. 50 mA DC
Inrush current: 1 A (Δt<10msat Us)
Filter time: max. 3 ms (Test pulse duration)
Typical response time: 60 ms (Automatic/manual start)
Typical release time: 20 ms
Recovery time: approx. 1 s
Protective circuit: Surge protection; Suppressor diode, 33 V (A1 - A2, Y2 - A2)
Reverse polarity protection
Operating voltage display: Green LED
Status display: Green LED
Output dataContact switching type: 2 enabling current paths
1 signaling current path
Contact material: AgSnO2, gold-flashed
Maximum switching voltage: 250 V AC/DC (Observe the load curve)
Minimum switching voltage: 10 V
Limiting continuous current: 6 A (N/O contact/N/C contact, high demand)
4 A (N/O contact, for low-demand applications)
Maximum inrush current: 6 A
Inrush current, minimum: 10 mA
Sq. Total current: 72 A2 (observe derating)
Interrupting rating (ohmic load) max.: 144 W (24 V DC, τ = 0 ms)
200 W (48 V DC, τ = 0 ms)
77 W (110 V DC, τ = 0 ms)
70 W (220 V DC, τ = 0 ms)
1500 VA (250 V AC, τ = 0 ms)
Switching capacity min.: 0.2 W
Switching capacity (360/h cycles): 5 A (24V (DC13))
5 A (230 V (AC 15))
Switching capacity (3600/h cycles): 5 A (24V (DC13))
5 A (230 V (AC 15))
Output fuse: 6 A gL/gG NEOZED (High demand)
4 A gL/gG NEOZED (Low demand)
Also applies to applications in accordance with EN50156-1.
Connection dataConnection technology
pluggable: yes
Conductor connection
Connection method: Push-in connection
Conductor cross section rigid: 0.2 mm² ... 1.5 mm²
Conductor cross section flexible: 0.2 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section AWG: 24 ... 16
Stripping length: 8 mm
DimensionsWidth: 22.5 mm
Height: 112 mm
Depth: 114.5 mm
Material specificationsHousing material: Polyamide
CharacteristicsSafety data
Stop category: 0
Safety data: ENISO13849
Category: 4
Performance level (PL): e
Safety data: IEC 61508 - High demand
Safety Integrity Level (SIL): 3
Safety data: IEC 61508 - Low demand
Safety Integrity Level (SIL): 3
Safety data: ENIEC 62061
Safety Integrity Level (SIL): 3
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Min. degree of protection of inst. location: IP54
Ambient temperature (operation): -20°C ... 55°C
Ambient temperature (storage/transport): -40°C ... 70°C
Maximum altitude: ≤ 2000 m (Above sea level)
Max. permissible humidity (storage/transport): 75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation): 75 % (on average, 85% infrequently, non-condensing)
Shock: 15g
Vibration (operation): 10Hz...150Hz, 2g
ApprovalsCE
Certificate: CE-compliant
Standards and regulationsAir clearances and creepage distances between the power circuits
Standards/regulations: DINEN60947-1
MountingMounting type: DIN rail mounting
Mounting position: On horizontal and vertical DIN rail
Connection method: Push-in connection
Technical Specs
ECLASSECLASS-11.0: 27371819
ECLASS-13.0: 27371819
ECLASS-12.0: 27371819
ETIMETIM 9.0: EC001449
UNSPSCUNSPSC 21.0: 39122200
Description
Safety relay for SIL 3 high and low-demand applications, also approved in accordance with EN 50156, Germanischer Lloyd, and EN ISO 13849, emergency stop and safety door monitoring, 1-channel, 2 enabling current paths, 1 signal contact, width: 22.5 mm, pluggable Push-in terminal block
