| Notes | General: For wall cutouts of type B24 |

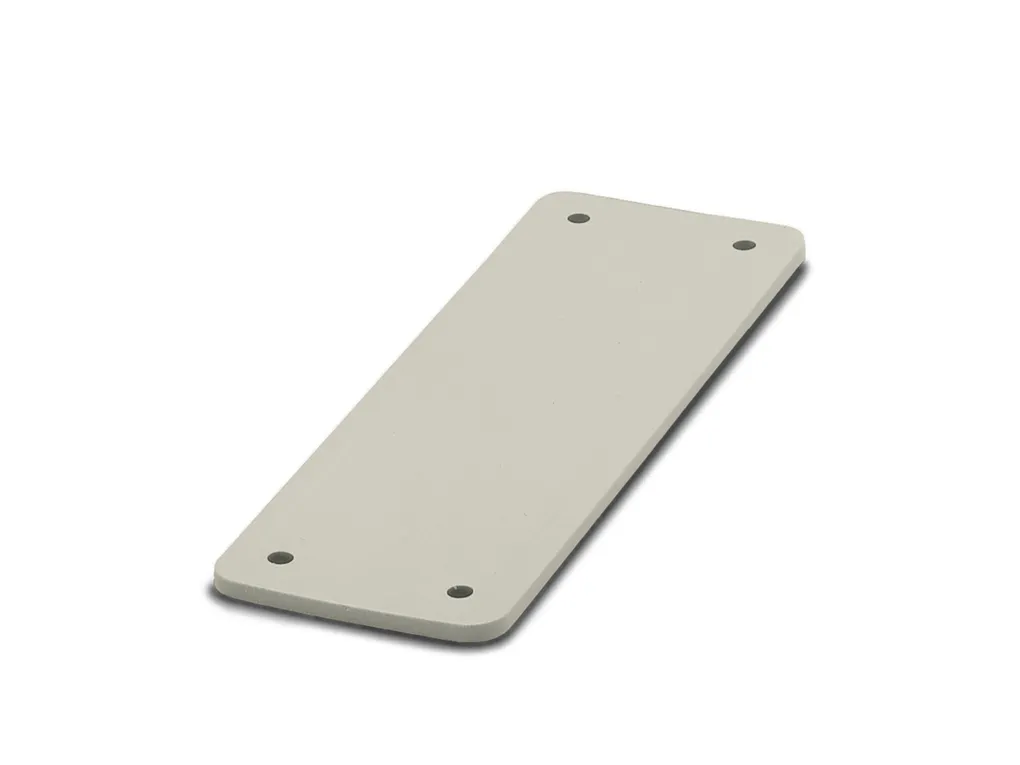

| Product properties | Product type: Adapter plate Type: B24 Seal present: yes Data management status Article revision: 00 |
| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/171050/full/b1500?format=jpg Width: 53 mm Height: 5 mm Length: 151 mm Drill hole distance, horizontal: 130 mm Drill hole distance, vertical: 32 mm Hole diameter: 5.5 mm |
| Material specifications | Material: Stainless steel 1.4301/AISI 304 Seal material: NBR/SBR |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 IP65 Ambient temperature (operation): -40 °C ... 125 °C |
| Mounting | Assembly note: Torque of the mounting screws 1 ... 2 Nm |
