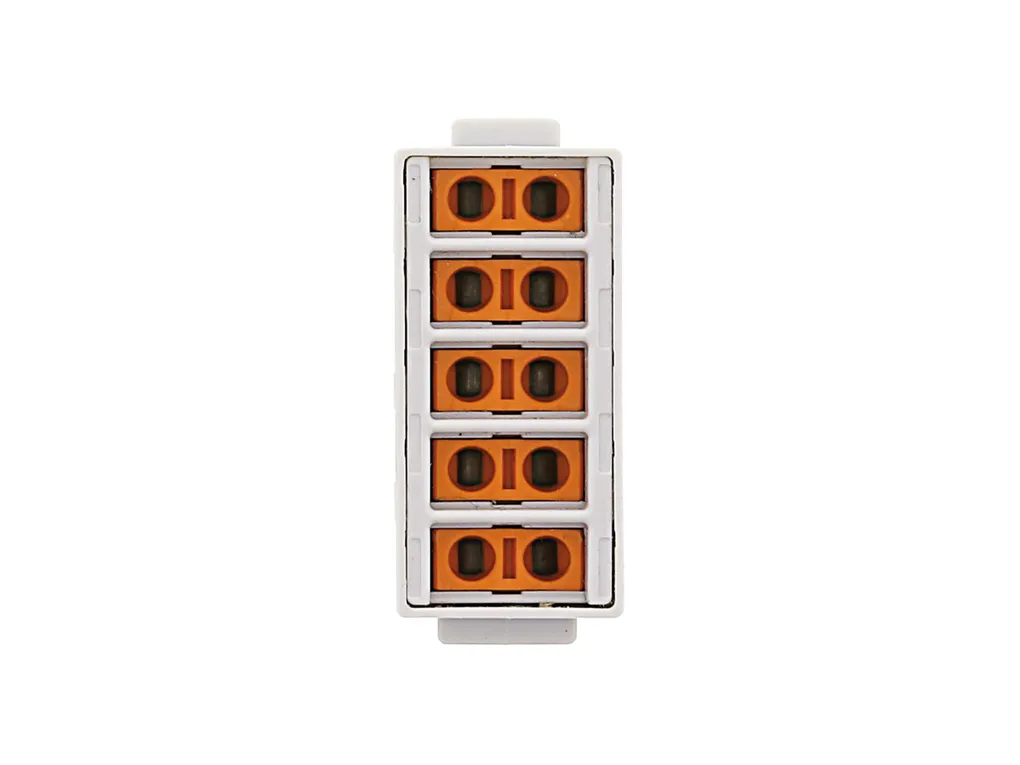

HC-M-05L-TPT-F - Contact insert module
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Use only flexible conductors with ferrule (in conjunction with CRIMPFOX 6 only) Connectors may be operated only when there is no load/voltage. For HEAVYCON housing type B6 to B48, HC-M-B...MF-... hinged module carrier frame required. |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Connection method: Push-in connection |
Product properties | Product type: Modular contact insert Number of positions: 5 Connection profile: 5 Contact numbering: 1 - 5 Application: Power Number of connections per position: 2 Number of module slots: 1 No. of power contacts: 5 No. of control contacts: 0 Contact material type: rolled Series: HC-M-05-T Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Connection data | Connection technology Connection technology: Push-in connection Number of connections per position: 2 Conductor connection Conductor cross section: 0.25 mm² ... 1.5 mm² Connection cross section AWG: 24 ... 16 Stripping length of the individual wire: 8 mm ±1mm |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/73f4096c6b161346934b9ddc110afc88/-S204x204-FJPG Width: 34 mm Height: 38 mm Length: 14.6 mm Mechanical characteristics Contact diameter: 2.5 mm |
Electrical properties | Rated voltage (III/3): 230 V (Conductor-PE) 400 V (Conductor-Conductor) Rated voltage for power contacts: 230/400 V Rated surge voltage: 4 kV Rated current: 16 A |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PA Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
Standards and regulations | Constructional and testing regulations: DINEN61984 DINEN60664 Tests: DINEN61984 DINEN60664 Testing Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
ECLASS | ECLASS-11.0: 27440217 ECLASS-12.0: 27440217 ECLASS-13.0: 27440217 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121400 |
